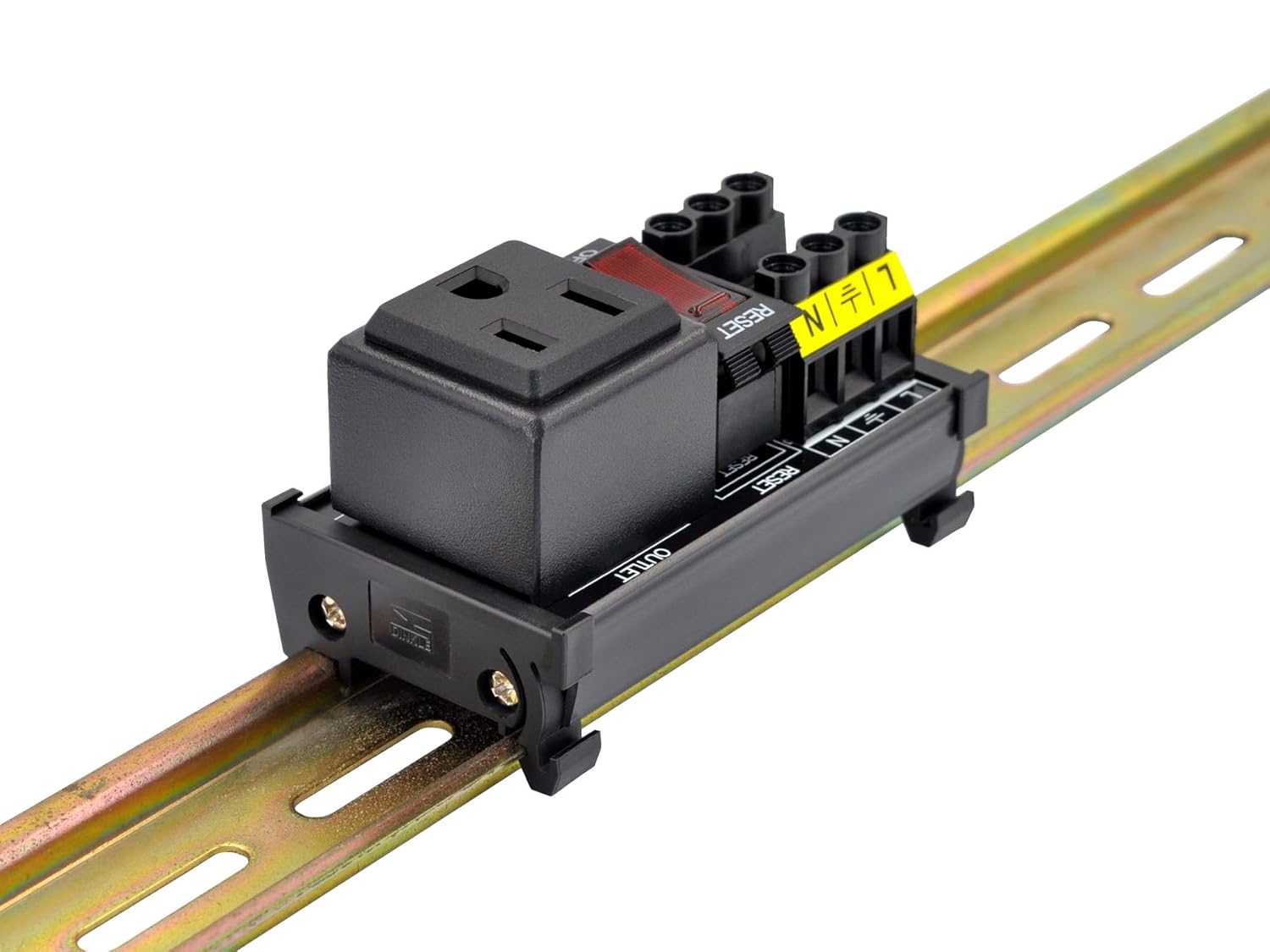

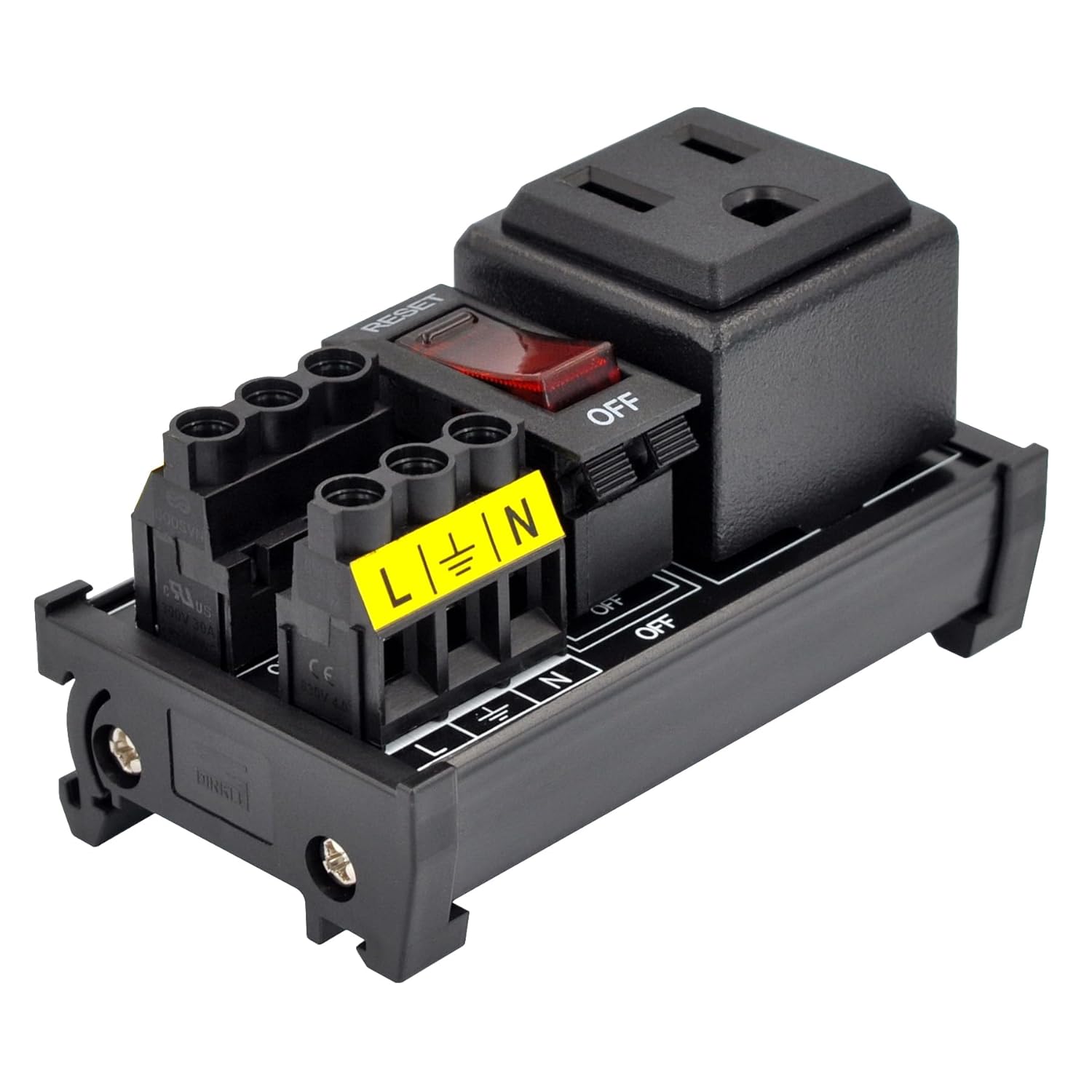

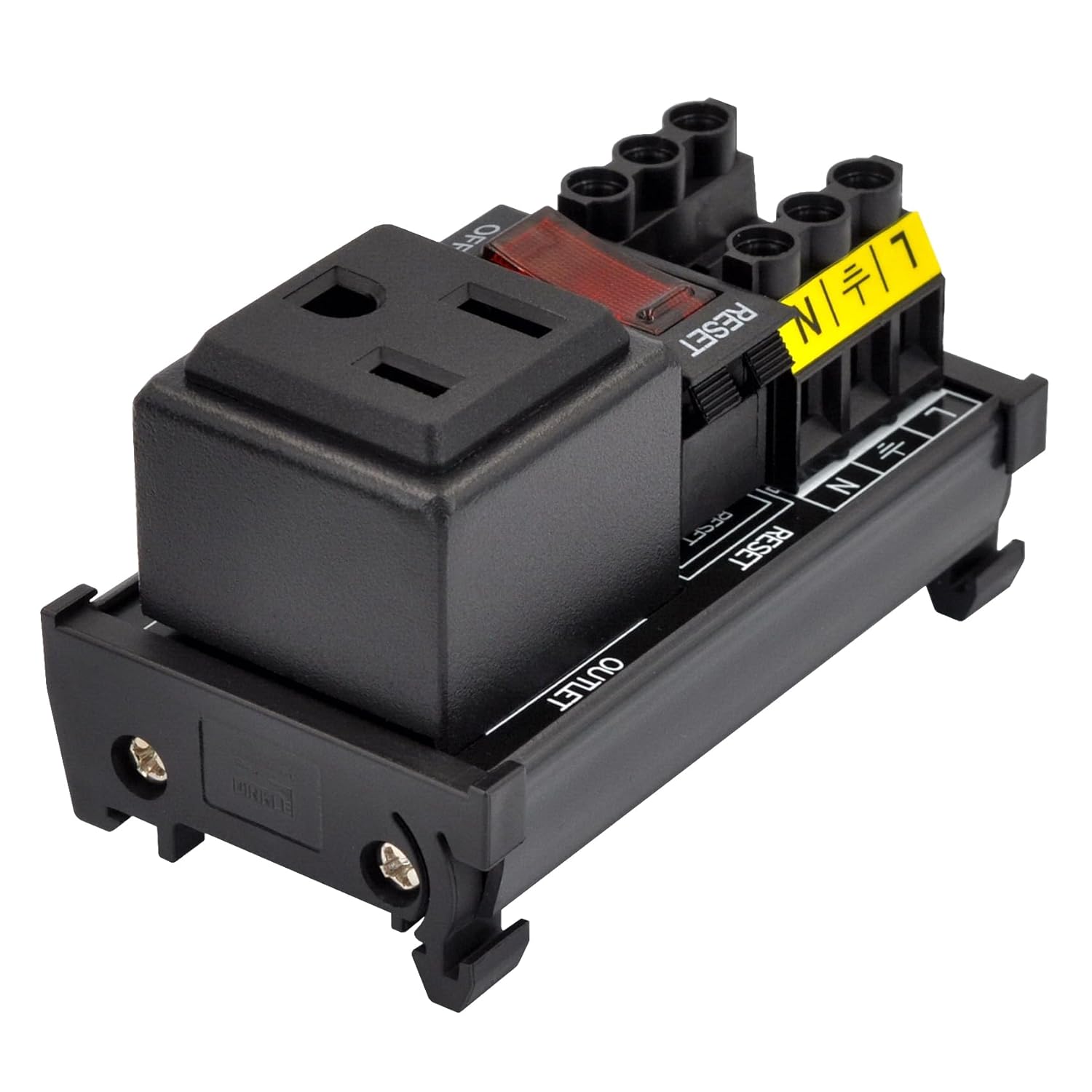

DIN Rail Mount AC 120V NEMA 5-15R Single Receptacle Outlet Power Strip Module, with Rocker Switch Thermal Circuit Breaker Overload Protector

Overview

• Brand : OONO
• Color : black
• Total Power Outlets : 1
• Voltage : 120 Volts

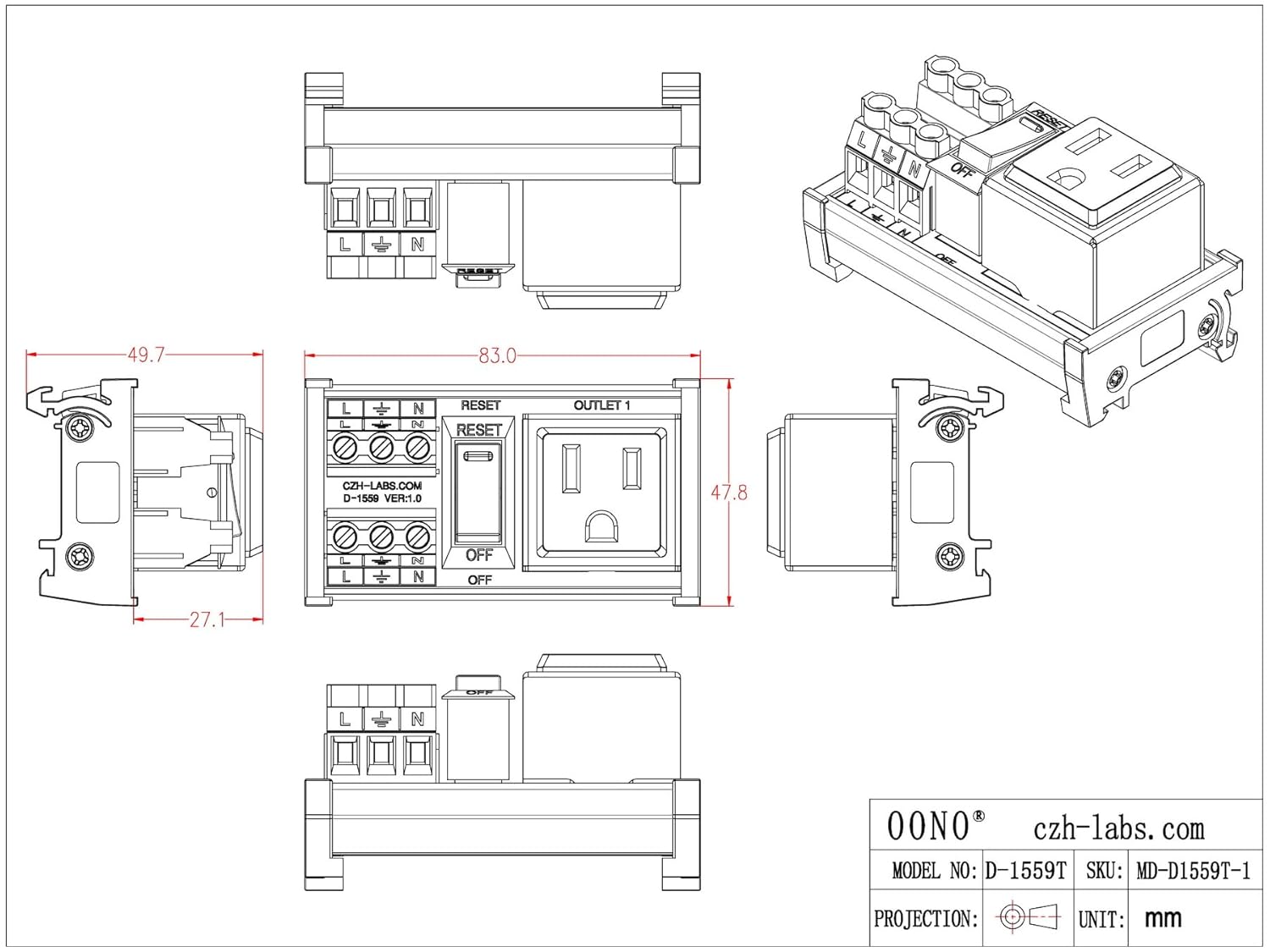

• Product Dimensions : 11"L x 2.5"W

About this item

• Outlet: 3-prong grounded NEMA 5-15R AC receptacle. Reinforced AC receptacle to ensure stability.
• Working voltage AC 120V. Receptacle rated current 15 Amps.

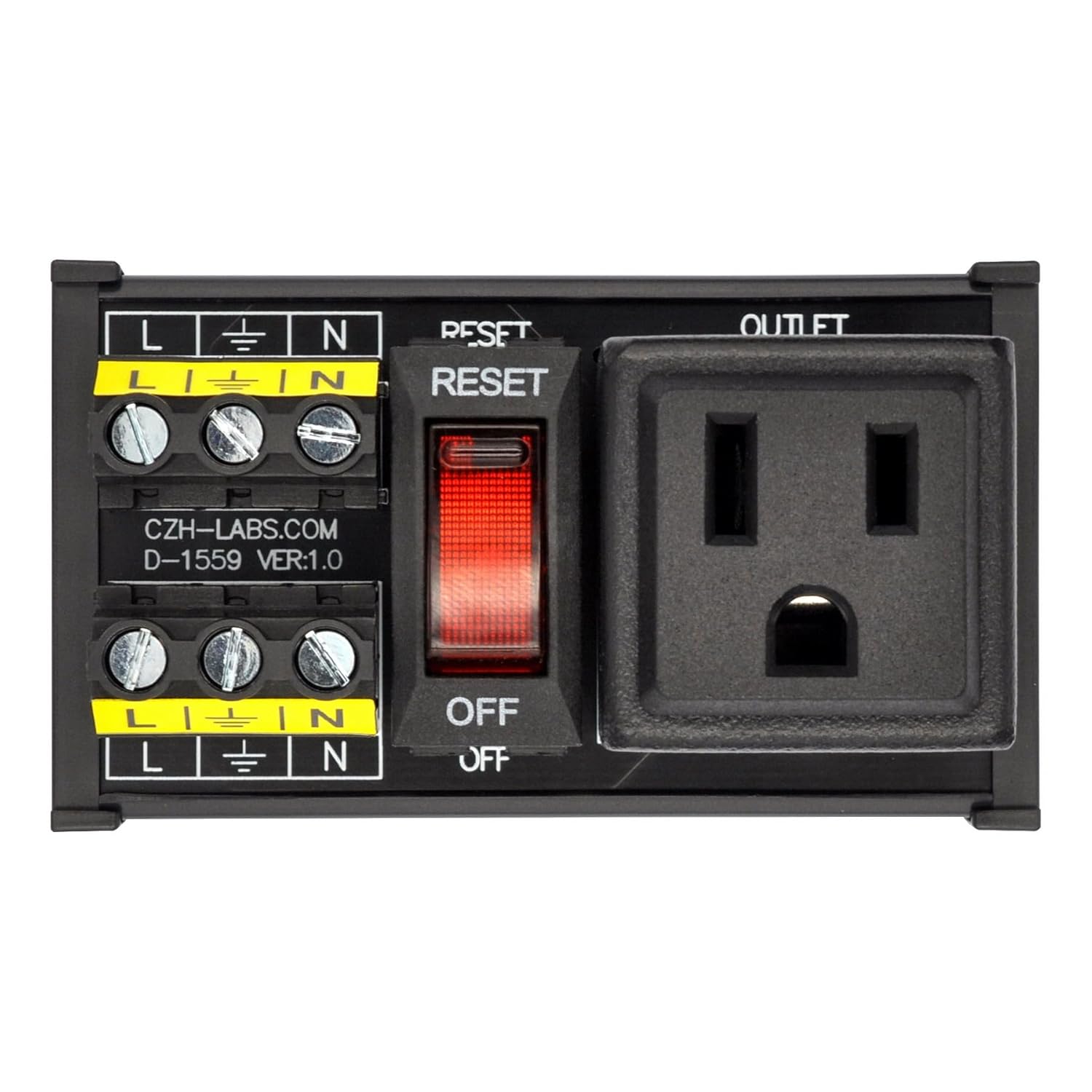

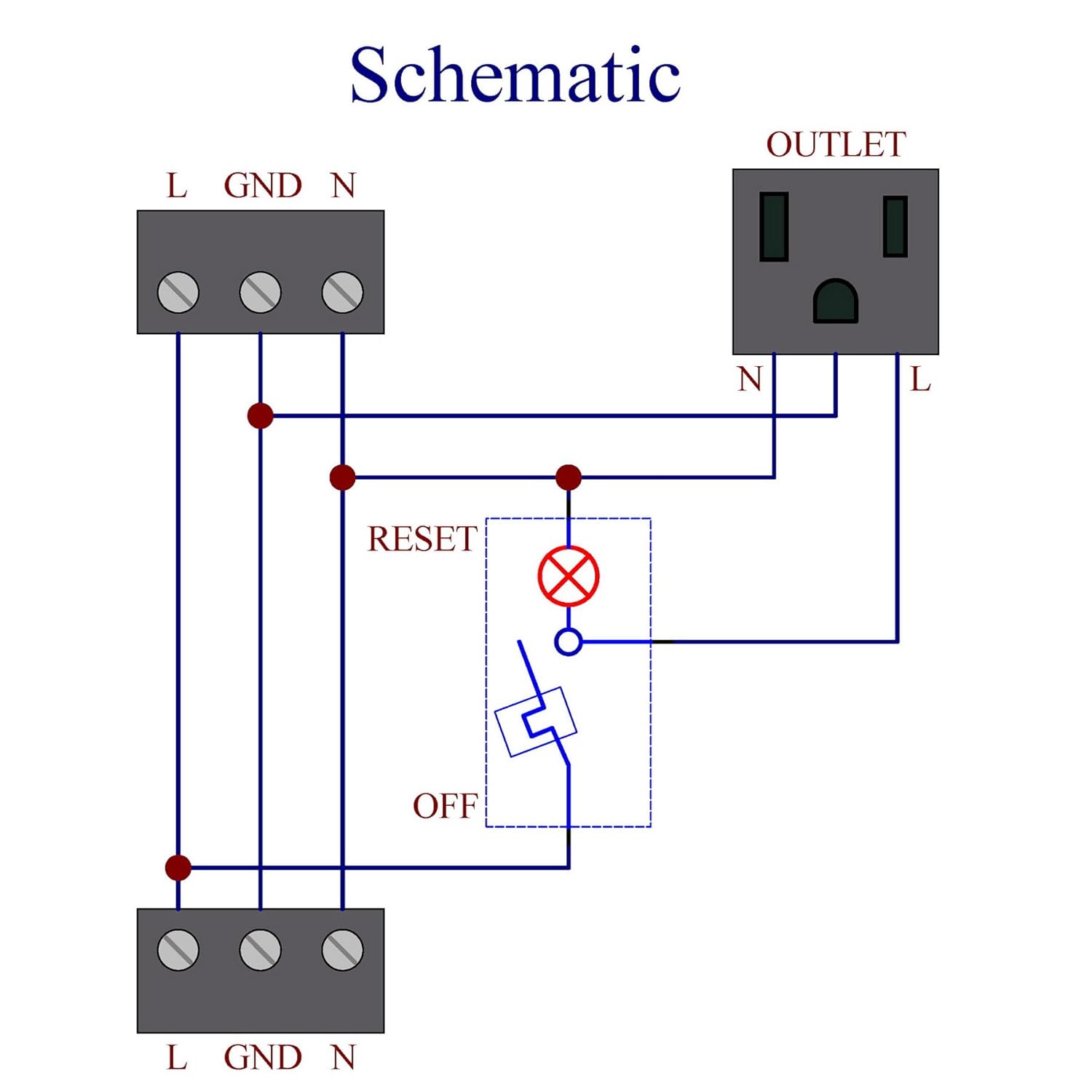

• Resettable rocker switch thermal circuit breaker overload protector current 15 Amps, built-in red indicator, support manually control output ON / OFF.
• Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
• DIN rail mount carrier can support width 35mm rail. High quality fireproof nylon material.
• UL CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL CE CQC certified terminal blocks. UL certified NEMA 5-15R receptacle. UL certified circuit breaker.
